A few screenshots of PMF
All screenshots are based on IBM's DB2 "sample" database, that includes
the gentleman in the 3rd image. Click images to enlarge (they open in new tab).

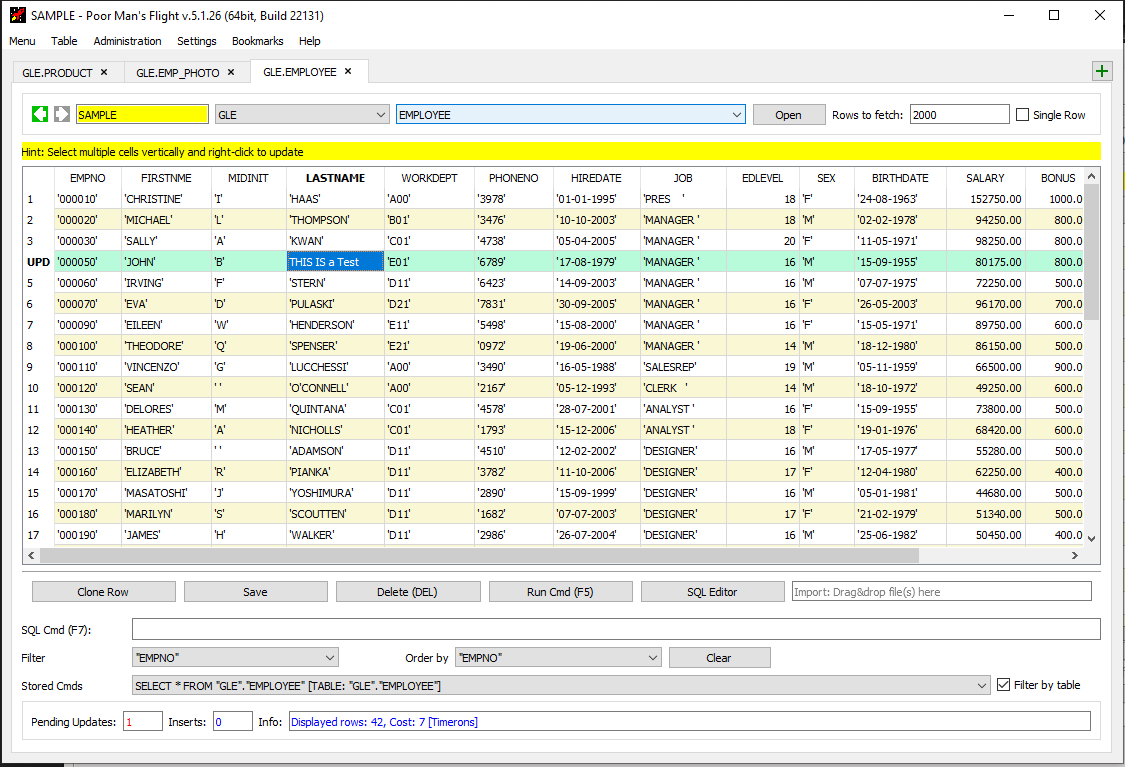

Main View: Edit cells, no SQL required.

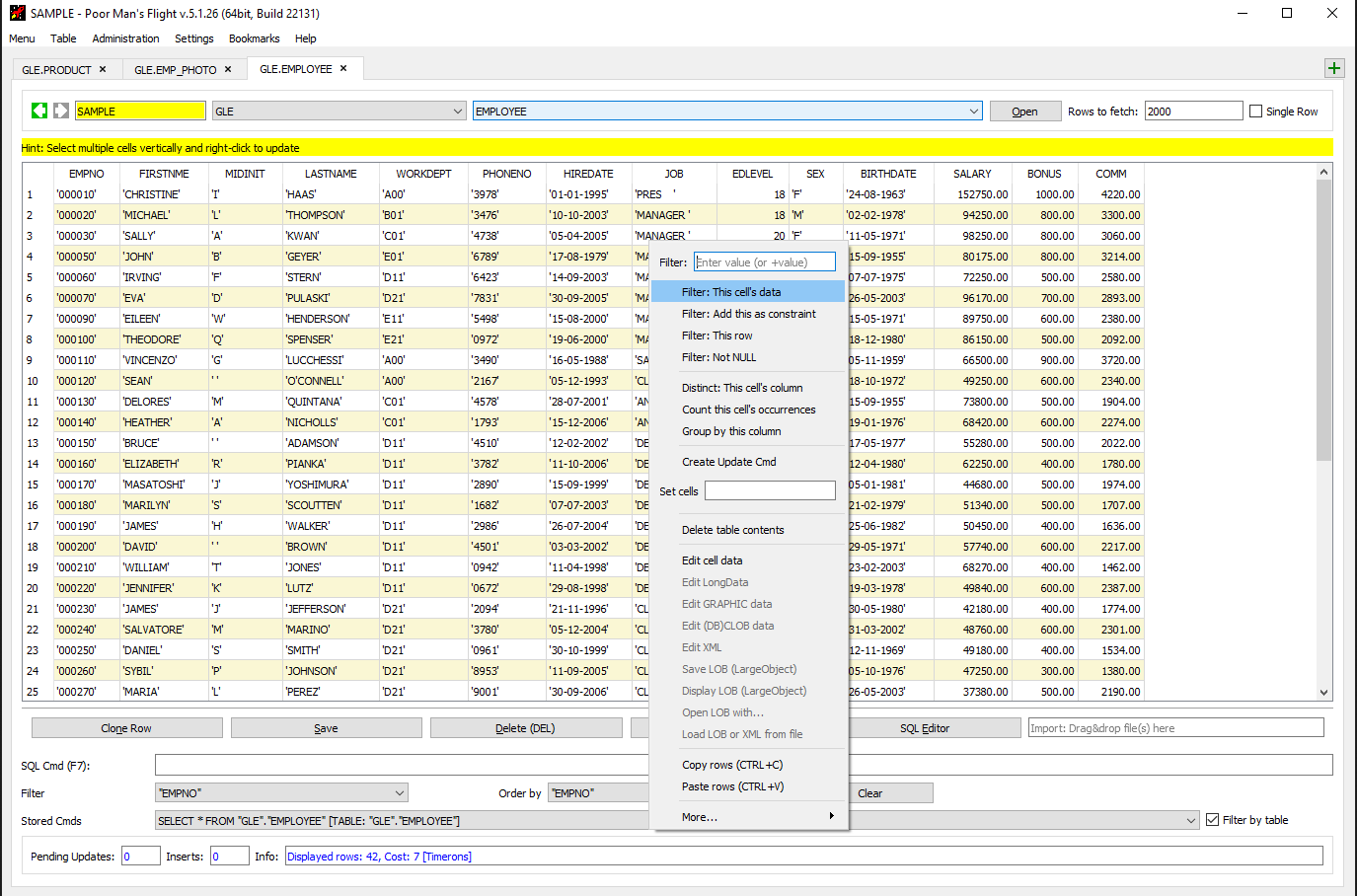

Right-clicking a cell will open a useful menu

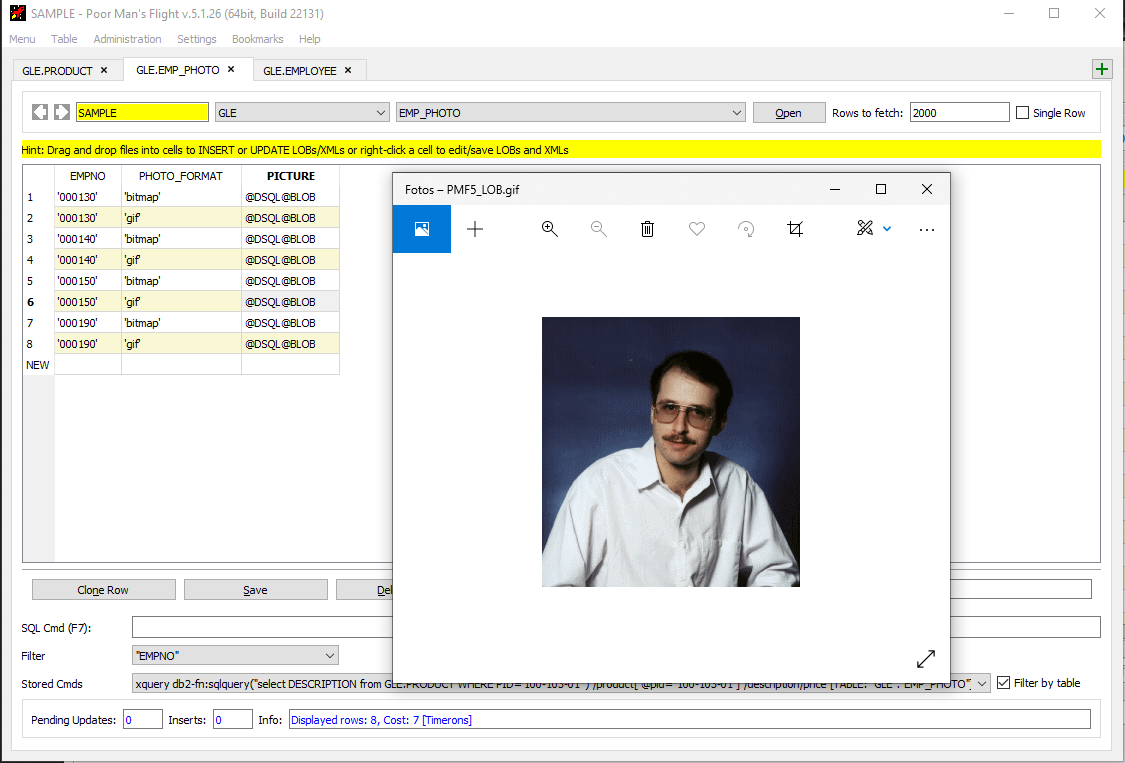

Open/Display LOB. Supports drag&drop LOB data

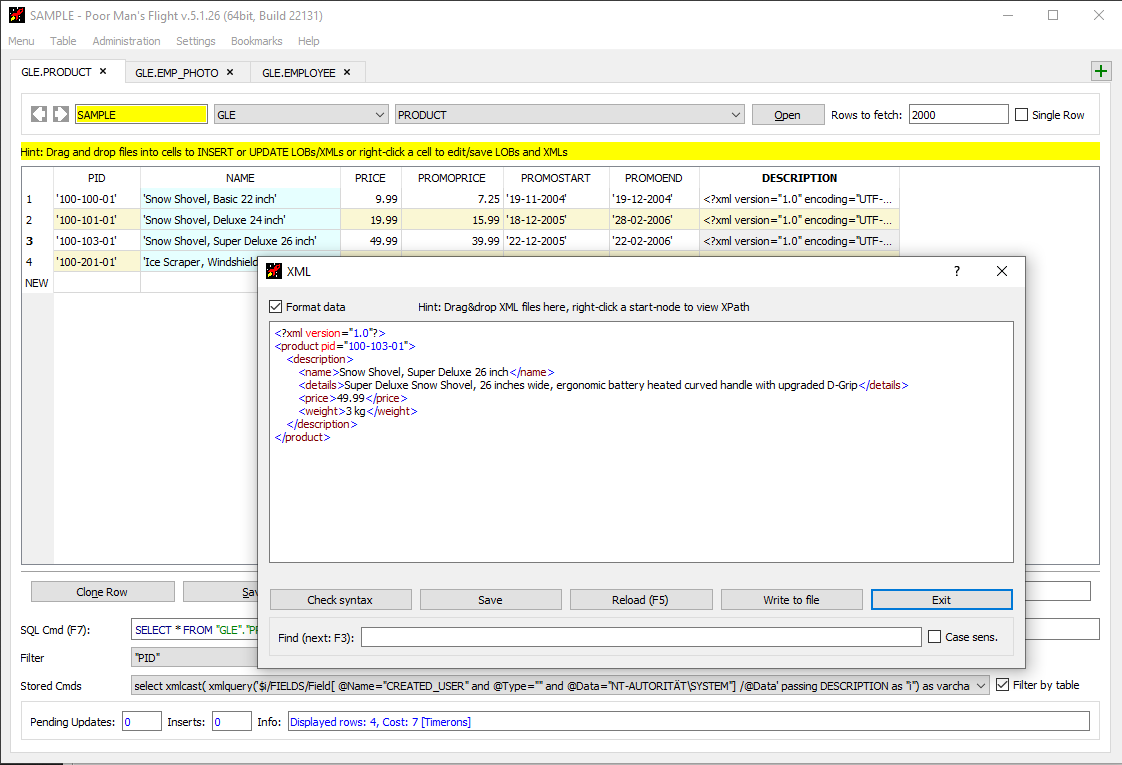

Edit XML data in place or drag&drop XMLs

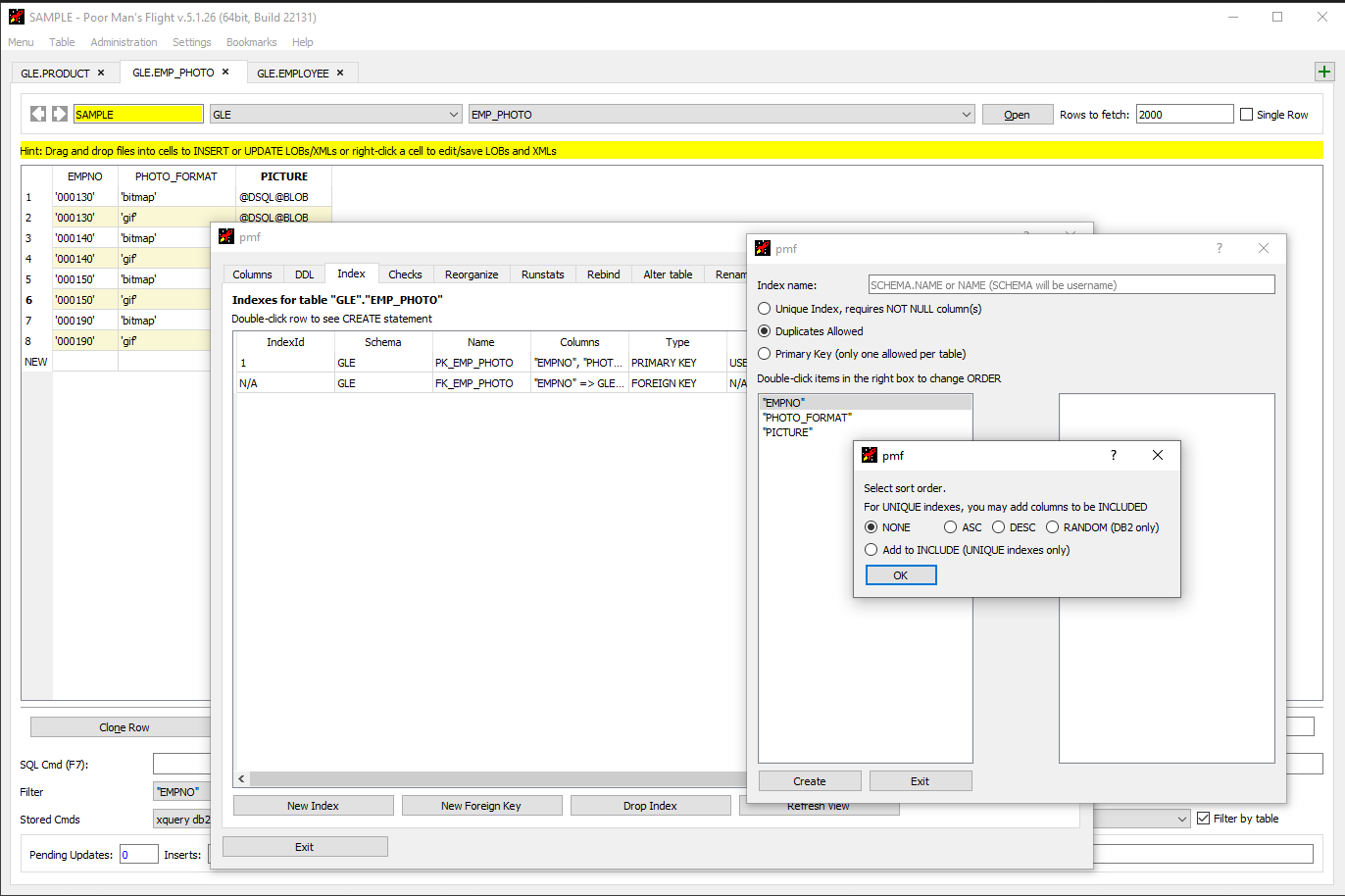

Manage Indexes, run Reorg, Runstats,...

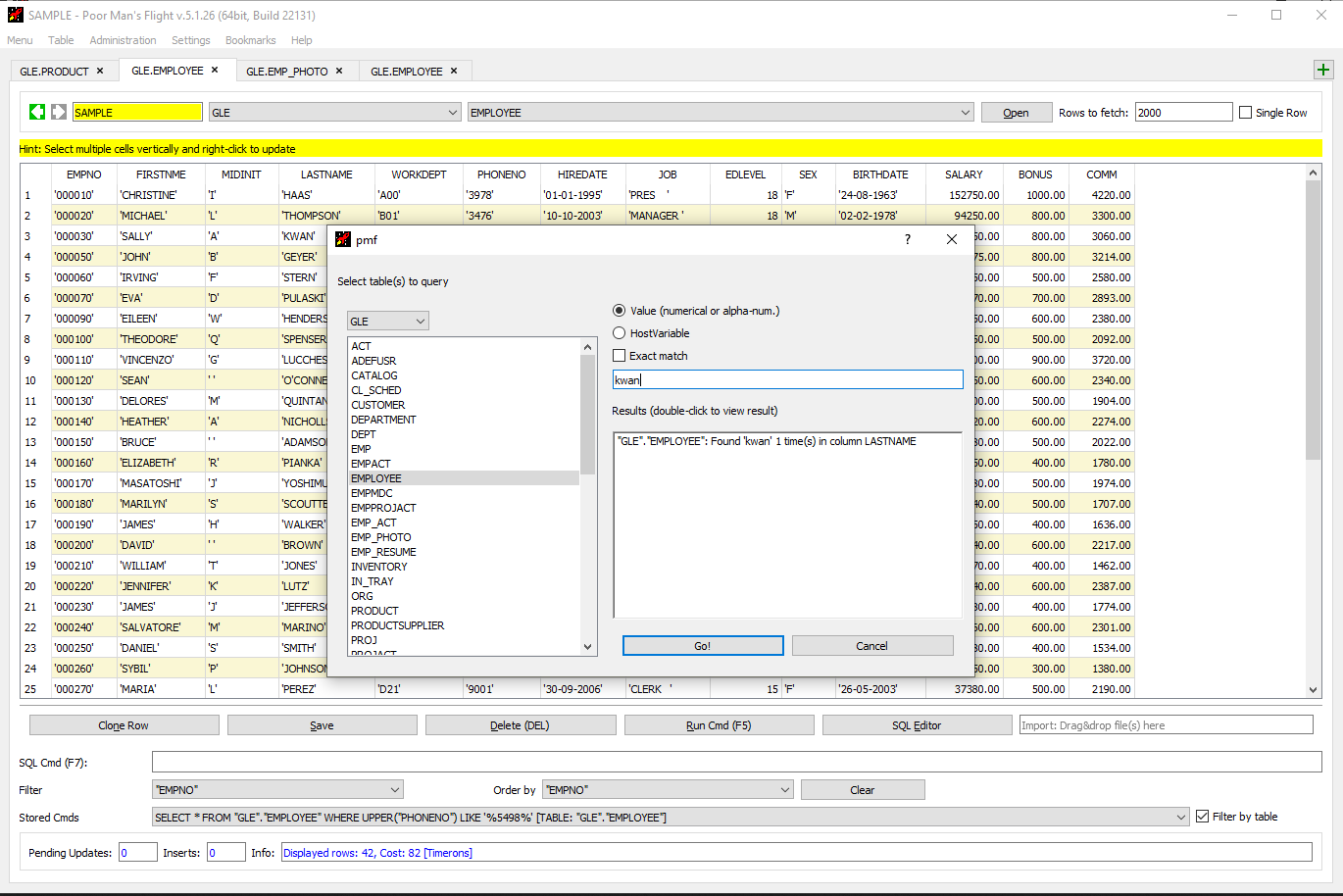

Search all tables for specific data or column names

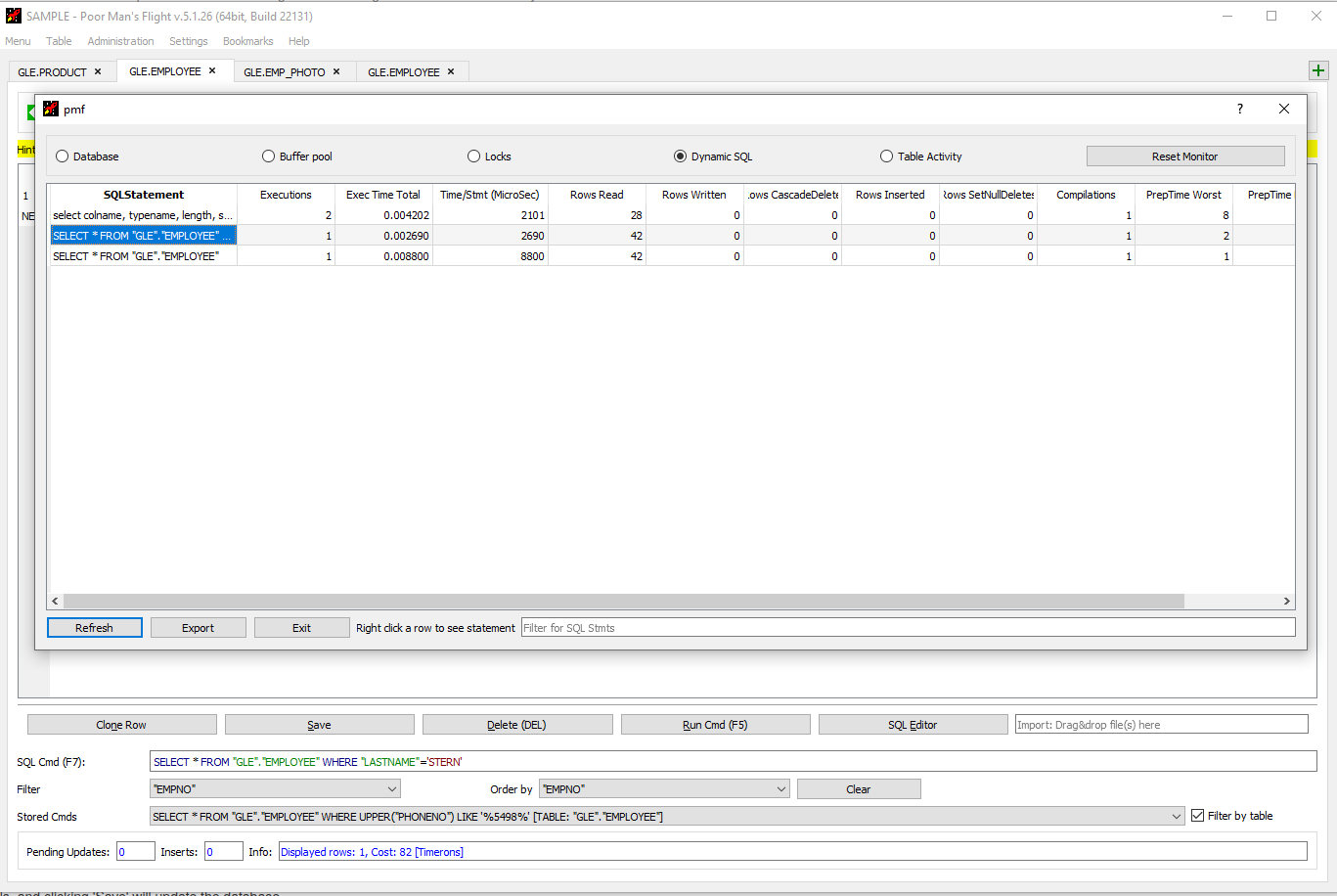

Monitoring a DB2 database
PMF can display multiple tables in a tabbed view. Usually, the first 2000
rows are displayed (this is configurable).
You can directly edit the cells, and clicking 'Save' will update the
database.
The cells have a context-menu for quickly filtering (e.g. SELECT * FROM
table WHERE colName1 = colData1 AND colName2 = colData2 ....) data.
The context-menu also lets you edit XML data and display LOB (Large Object)
data.
It's also possible to copy and paste rows across databases (provided source
and target table have the same columns, of course).
Additional functions:
- set bookmarks: Store often used or complicated SQL-statements in the
bookmark submenu for easy access.
- create and drop indexes
- copy and paste rows across databases
- view, edit, export and import XML data
- drag & drop LOB and XML data into cells
- view, export and import LOB (large object) files
- do Reorg, Runstats and Rebind (DB2 only)
- add and remove columns in a table
- generate a DDL (Data Definition Language) file for a table
- export and import data in IXF, DEL and WSF format, including LOBs and
XMLs, also export data to a plain text file
- gather snapshot data (DB2 only)
- drop tables
- view table space and table size information (DB2 only)
- find identical rows (believe me, it happens)
- query the whole database to find columns or data (for example, find
all tables which contain the string '123ABC' in any column)
- Settings (open tables etc) will be restored upon restarting
(configurable).
PMF is intended as a lightweight and intuitive tool for developers and
admins. If you have suggestions for improvements, let me know.
